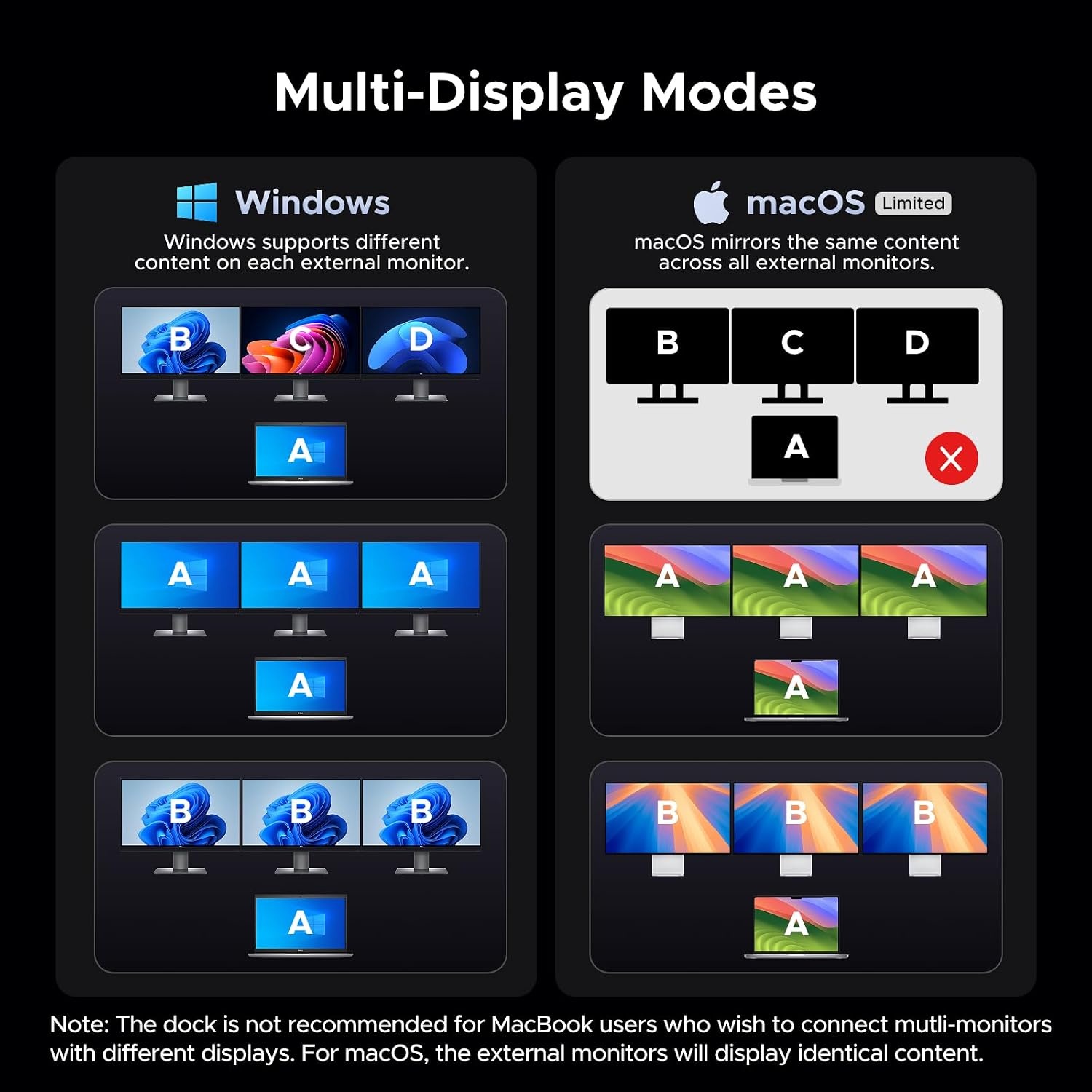

Product Description Previous page Next page 1 macOS Display Limitation 2 Triple 4K@60Hz 3 Single 4K@120Hz 4 Resolution Specifications Previous page Next page 1 100W Total Power Output 2 True 100W Laptop Charging 3 Transfer Files in Seconds 4 SD/TF & Ethernet Ports 5 Space-Saving Design Previous page Next page 1 Laptops Compatibility 2 Clutter-Free Your Desk 3 Effcient Heat Management 4 140W GaN Adapter 5 Vertical or Horizontal Key Tips for Setup and Use macOS Display Limitation The dock is not recommended for MacBook users who wish to connect multi-monitors with different displays. For macOS, the external monitors will display identical content. Laptop's USB-C Requirements For full compatibility, ensure your laptop's USB-C port supports both DisplayPort 1.2/1.4 Alt Mode (for display output) and Power Delivery (for charging) , in addition to either USB4, Thunderbolt 5/4/3. Plug-and-Play The dock is plug and play, doesn't required install any drivers. 4K@120Hz Display Support Only DisplayPort supports up to single 4K@120Hz display. For 4K@120Hz, ensure your laptop’s USB-C port supports DP1.4 with DSC (Display Stream Compression) 4K@120Hz Cable Requirement To ensure you achieve the described 4K@120Hz display with this dock, use a DisplayPort 1.4 cable no longer than 3 m (28AWG). Shared Power Output Limitation The 100W upstream USB-C port and 27W USB-C output share a combined power of 100W. When both are in use, the maximum output power per port may be less than the individual rated maximum. 100W Charging Requirement To achieve 100W laptop charging, ensure your laptop supports the PD 3.0 protocol and that the dock's 27W USB-C PD port is free of connected devices. Proprietary Charging Notice Some laptops use proprietary charging protocols and may display a "slow charging" warning when using non-original chargers. If your laptop requires 100W or less, the dock will charge it at the same speed as the original adapter. For laptops requiring over 100W, we recommend using the orginal charger. Front USB-C: Transfer Only The front USB-C ports are for data transfer only, not support charging & display. 27W USB-C: Charging Only The 27W USB-C PD output is for charging only. Recommended Connection Cable We recommend using the included USB-C to USB-C cable to connect the dock to your laptop, as other cables may cause compatibility issues. Comparison 14-in-1 USB-C Dock Buying Options 17-in-1 TB5 Dock Buying Options 10-in-1 TB5 Dock Buying Options 13-in-1 TB5 Dock Add To Basket 13-in-1 TB4 Dock Buying Options 9-in-1 DisplayLink Dock Buying Options 12-in-1 USB-C Hub Buying Options Customer Reviews 3.8 out of 5 stars 800 4.1 out of 5 stars 193 4.2 out of 5 stars 175 4.8 out of 5 stars 25 4.6 out of 5 stars 87 4.3 out of 5 stars 897 4.3 out of 5 stars 5,049 Price £89.89£89.89 £314.99£314.99 £174.99£174.99 £349.99£349.99 £159.99£159.99 £97.99£97.99 £37.99£37.99 Prefect For Windows Laptop Users TBT5/4 Laptops Users TBT5/4 Laptops Users TBT5/4 Laptops Users TBT4 Laptops Users MacBook Users Windows Laptop Users Display Port 2x HDMI + 1x DP 2x TBT5, 1x DP 2x TBT5, 1x DP 3x TBT5 2x TBT4 + 1x DP 2x HDMI + 2x DP 2x HDMI + 1x DP Multi-Display Modes Win: A+B+C+D, macOS: A+B+B+B Win: A+B+C+D, macOS: A+B+C+D Win: A+B+C+D, macOS: A+B+C+D Win: A+B+C+D, macOS: A+B+C+D Win: A+B+C, macOS: A+B+C Win: A+B+C, macOS: A+B+C Win: A+B+C+D, macOS: A+B+B+B Maximum Resolution 4K@120Hz 8K@60Hz 8K@60Hz 8K@60Hz 8K@30Hz 4K@60Hz 4K@120Hz USB-C Data Port 2x USB 10Gbps 3x USB 10Gbps — 1x USB 10Gbps 1x USB 10Gbps 1x USB 10Gbps 2x USB 10Gbps USB-A Data Port 1x USB 10Gbps, 2x USB 5Gbps 3x USB 10Gbps 3x USB 10Gbps 2x USB 10Gbps, 2x USB 5Gbps 3x USB 5Gbps 2x USB 10Gbps 2x USB 2.0 Charging for Laptop Up to 100W Up to 140W Up to 100W Up to 140W Up to 96W Up to 85W Up to 85W Ethernet 1Gbps Ethernet 2.5Gbps Ethernet 1Gbps Ethernet 2.5Gbps Ethernet 1Gbps Ethernet 1Gbps Ethernet 1Gbps Ethernet SD/TF Card Slot SD/TF 3.0 SD/TF 4.0 SD/TF 3.0 SD/TF 4.0 SD/TF 3.0 — SD/TF 3.0 3.5mm Audio 1x 3.5mm Audio 3x 3.5mm Audio — 1x 3.5mm Audio 1x 3.5mm Audio — 1x 3.5mm Audio M.2 NVMe Slots — Up to 8TB — — Up to 8TB — — Power Supply 140W 240W 140W 180W 180W — — From the brand Previous page UGREEN TB5 Docking Station Visit the store Triple Display Dock with Power Visit the store Revodok Max Thunderbolt 5 Dock Visit the store Thunderbolt Docking Station Visit the store USB-C Docking Station Visit the store Mac Mini M4 & Steam Deck Dock Visit the store USB-C Hub Visit the store UGREEN Wireless Mouse Series Visit the store UGREEN Power Bank Visit the store UGREEN USB C Cable Visit the store UGREEN USB C Charger Visit the store UGREEN GaN USB C Charger Visit the store Next page
Kenmerken:

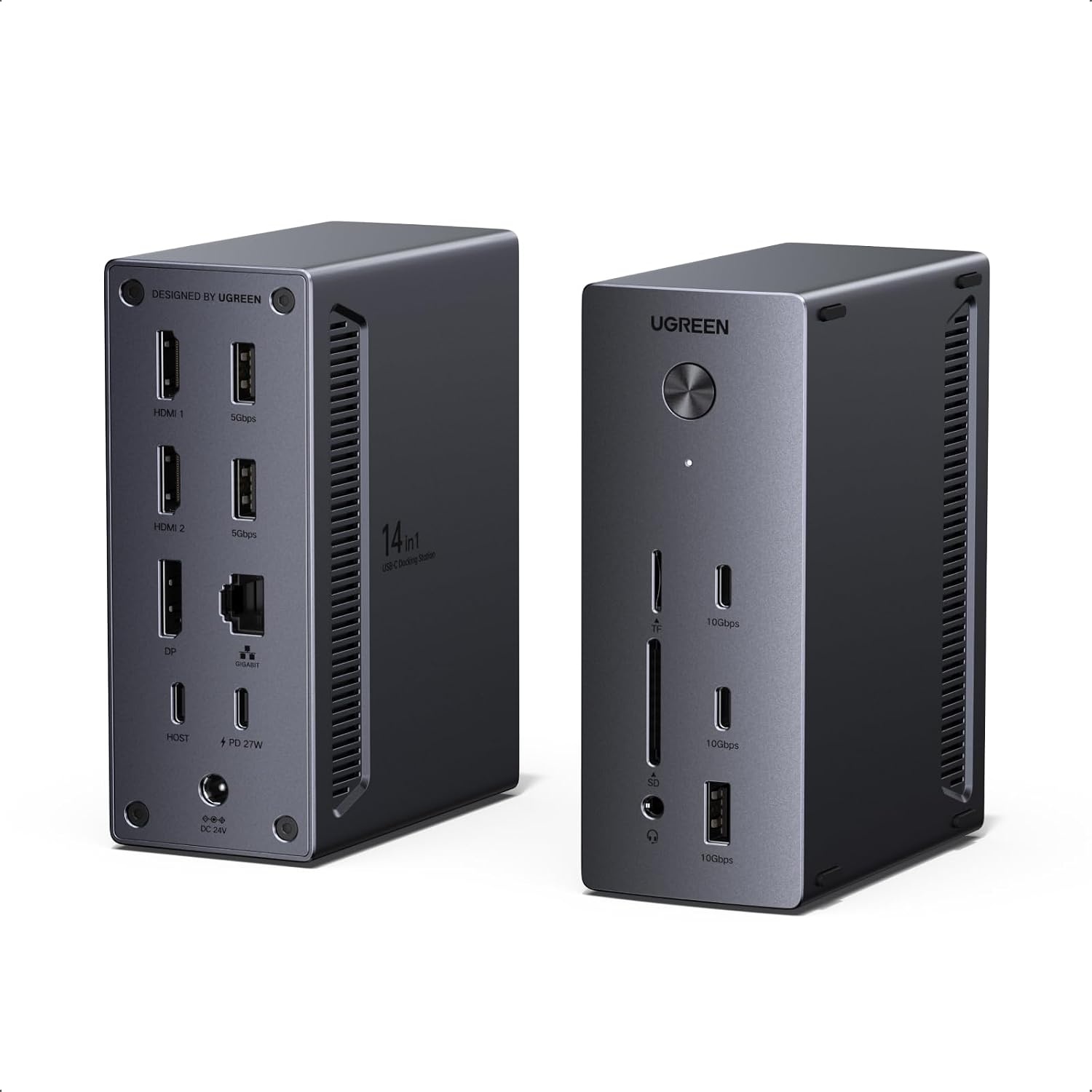

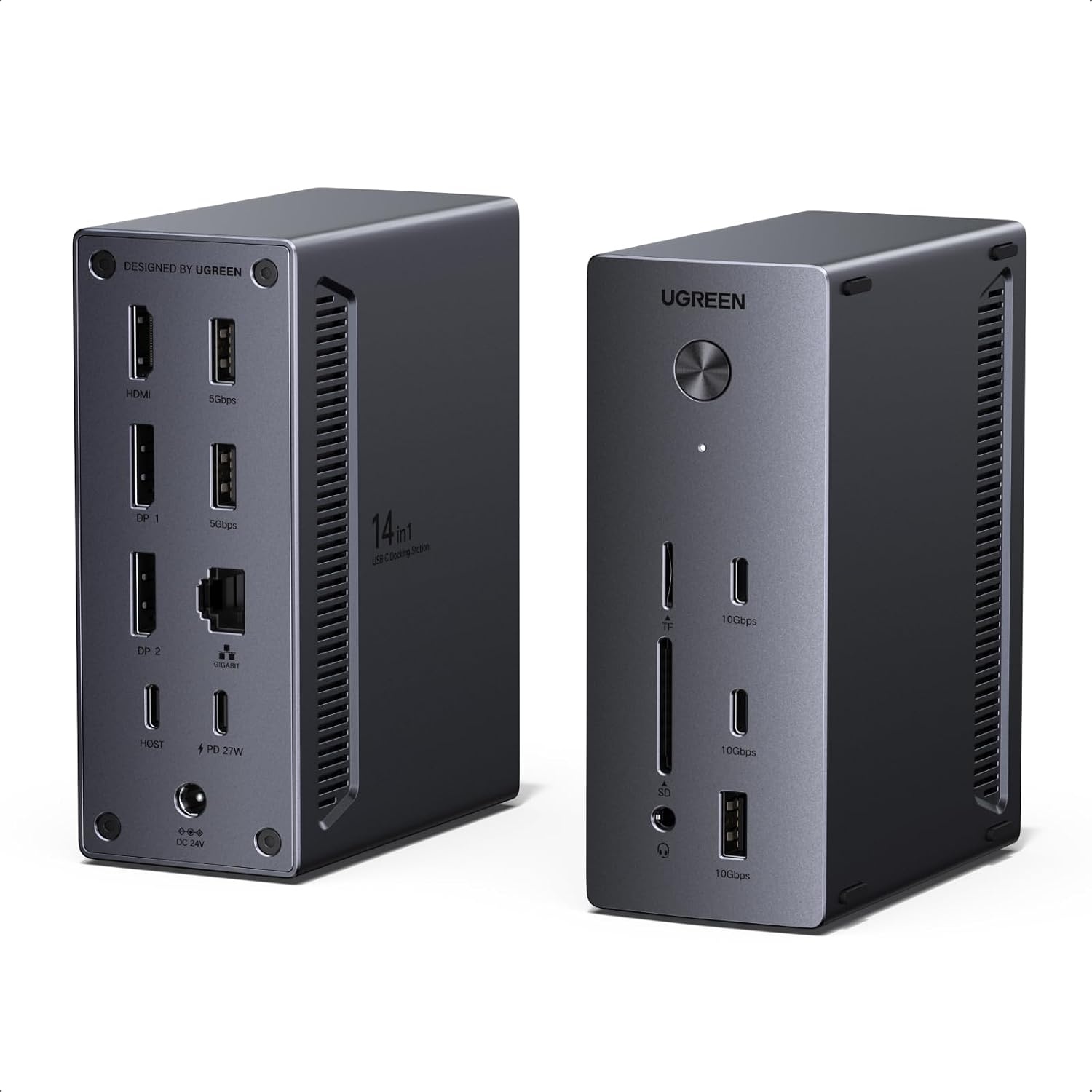

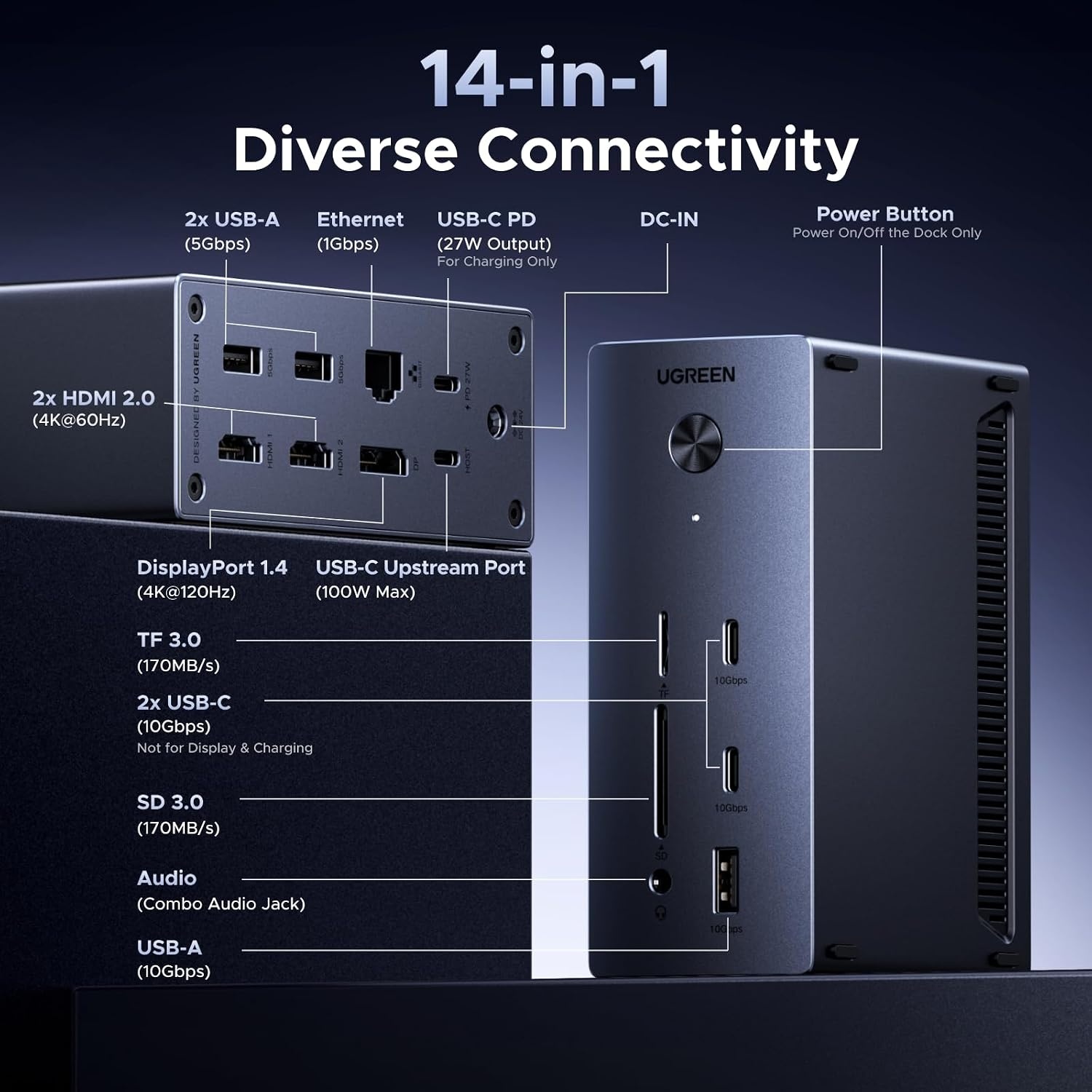

- 14-in-1 Professional Connectivity: One-cable docking simplifies desk setup for hybrid office environments, equipped with 2 4K HDMI, a 4K@120Hz DisplayPort, a 100W USB-C upstream port, a 27W USB-C PD output, 2 USB-C 10Gbps data ports, 2 USB-A ports, 170MB/s SD/TF card slots, an Ethernet, a 3.5mm AUX port, and a 140W DC input
- Single 8K, Triple 4K Display Versatility: Simultaneously drive three 4K monitors via dual HDMI ports and a DisplayPort, enabling seamless multitasking. The DisplayPort supports up to 8K@30Hz or 4K@120Hz for a single monitor, delivers exceptional clarity and smoothness

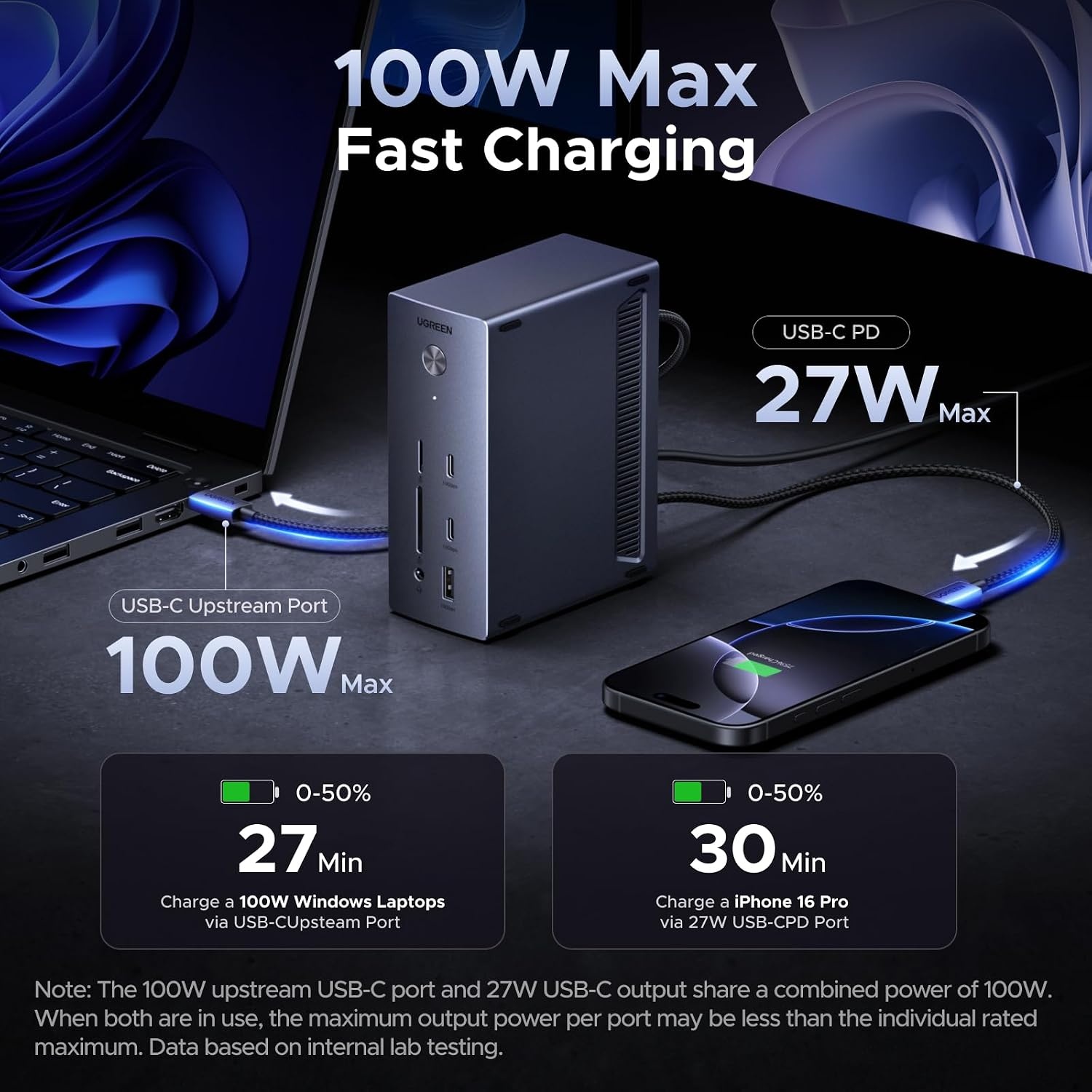

- True 100W Laptop Charging: Deliver full-speed 100W PD charging to high-performance laptops, replenishing 50% battery in 27 minutes. The USB-C PD port also supports charging your phone/tablet up to 27W (Note: The 100W upstream USB-C port and 27W USB-C output share a combined power of 100W. When both are in use, the maximum output power per port may be less than the individual rated maximum. )
- Transfer Files in Seconds: Transfer 20GB files in 32 seconds through 10Gbps USB-C/A ports, while 170MB/s SD/TF card slots accelerate photo/video workflows. Gigabit Ethernet ensures stable video conferencing and cloud backups (Note: The front USB-C ports are for data transfer only, not support charging & display. )

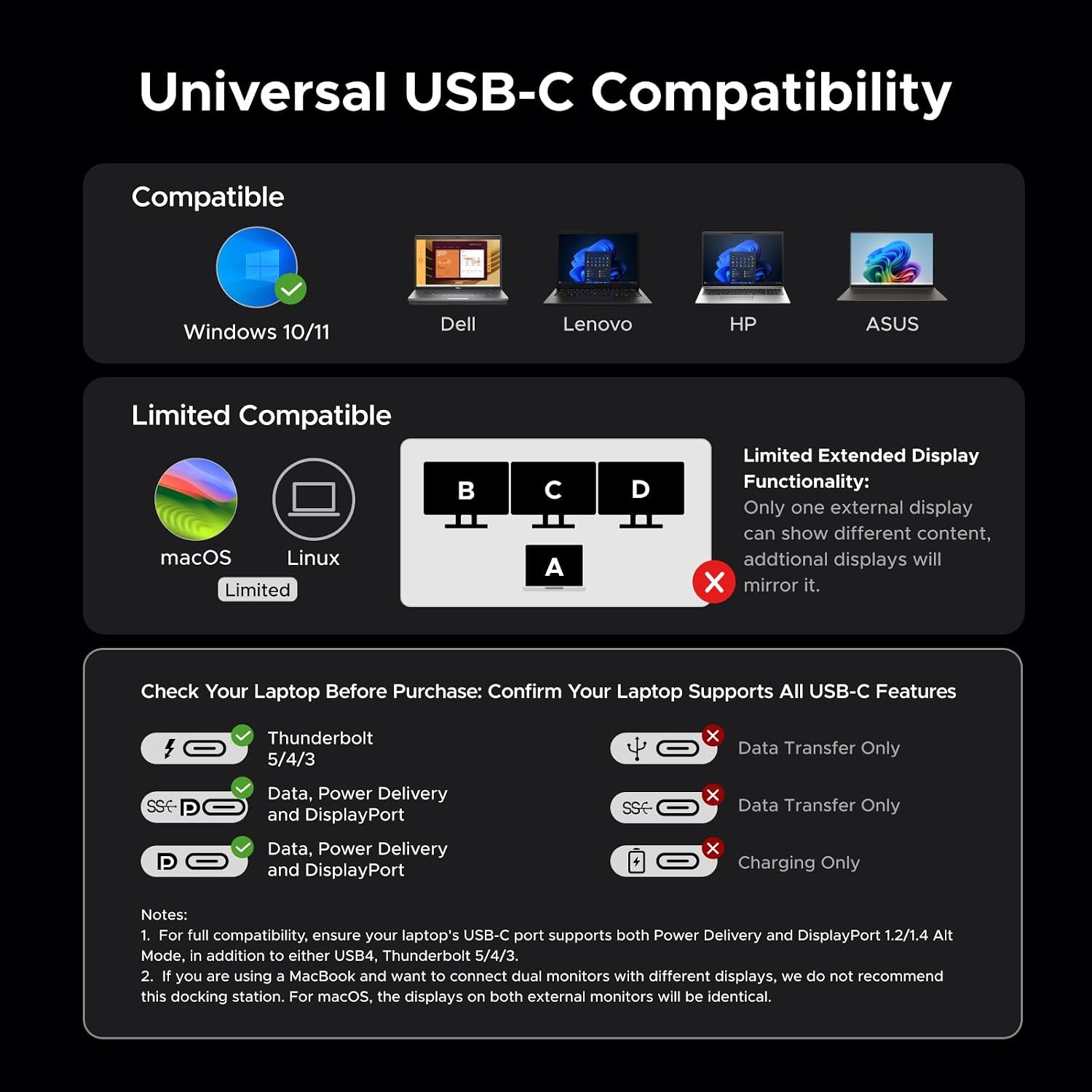

- Wide Compatibility: Supports USB-C, USB4, and Thunderbolt connections. Compatible with Windows 10 and 11, and laptops that support DP Alt Mode and Power Delivery
Specificaties:
- Hardware interface: Ethernet, HDMI, USB 3.0, USB Type C
- Compatible devices: Computer, Monitor, TV, USB Flash drive, Card reader
- Total usb ports: 5
- Number of ports: 14
- Total hdmi port: 2
- Wattage: 100 watts
- Input voltage: 24 Volts (DC)
- Minimum required operating system version: Windows 10
- Smart home compatibility: Not Smart Home Compatible
- Colour: Grey
- Brand name: UGREEN
- Manufacturer: Ugreen Group Limited
- Model number: CM843
- Country of origin: China
- Unit count: 1.0 count
- Product warranty: 2 year manufacturer
